0805 PURPLE SMD LED CHIP
Features:
- (1)suitable for all SMT asembly methods.
- (2)compatible with infrared and vapor phase reflow solder process.
- (3)compatible with automatic placement equipment.
- (4)This product doesn't contain restriction substance,comply ROHS standard.
Applications:
- Turn singals
- Status indicators:comsumer & industrial
- Backlighting:LCDS,Key pads adverstising
- General use

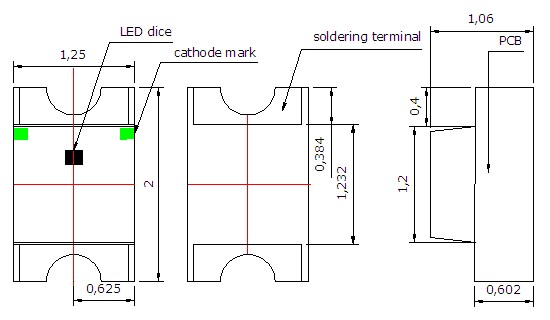

Package Dimensions:
Electrical and optical characteristics(Ta=25Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)Electrical and optical characteristics(Ta=25C)C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Iv | 50 | --- | 80 | mcd | If=20mA (Note 1) |
| Viewing Angle | 2θ1/2 | --- | 120 | --- | Deg | (Note 2) |
| Domint Wave Length | nm | 400 | --- | 410 | k | IF=20mA (Note 3) |
| Forward Voltage | VF | 3.2 | 3.3 | 3.4 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 100 | µA | VR=5V |
Soldering
Preheating:140°C-160°C±5°C,within 2 minutes.
Operation heating:235°C(MAX.) within 10 seconds.
Gradual Cooling(Avoid quenching)
Preheating:140°C-160°C±5°C,within 2 minutes.
Operation heating:235°C(MAX.) within 10 seconds.
Gradual Cooling(Avoid quenching)
Preheating:120°C-150°C, within 120-180 sec
Operation heating:245°C±5°C within 5 sec.260°C(MAX)
Gradual cooling(Avoid quenching)
|
|
1.1mm THICKNESS, SURFACE MOUNT LIGHT EMITTING DIODE, 2V PURPLE 0805 SMD LED,RELIABLE QUALITY,LED DIODE,3 YEAR GUARANTEE Images
|
